| Brand Name : | VISION |
| Model Number : | Y25-Y35 |
| Certification : | ISO9001:2008; Rohs, Reach, SGS |
| Supply Ability : | 100000 Pieces per Day |
| Price : | Negotiable |
| Payment Terms : | negotiable |
| Delivery Time : | 5 - 8 work days |

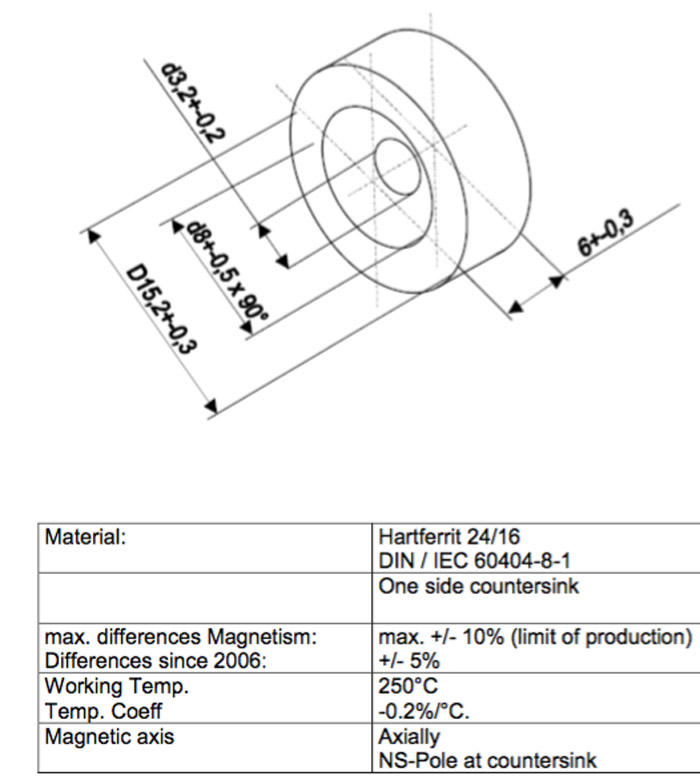

Custom Ceramic Ferrite Pot Y30BH Magnet with Countersunk Hole D15.2 X H6 X d3.2 X d8
15 years experiences in manufacturing Ferrite magnet
Large Ring Ferrite Speaker magnet size and shape can customize
Fast delivery and cheap price
| Produce name | Custom Ceramic Ferrite Pot Y30BH Magnet with Countersunk Hole D15.2 X H6 X d3.2 X d8 |
| Shape | Ring (Ferrite magnet size and shape can be customized) |
| Material | Sro or Bao and Fe2o3 |
| Coating | No |
| Tolerance in size | Length and Width: +/- 2%, Height: +/- 0.1 |
| Magnetization direction | Thickness, Length, axially, diameter, radially, multipolar |
| Grade | Y25, Y30, Y33, Y35 etc |
| Process | Sintered Ceramic processing technology |
| MOQ | Samples could be offered |
| Delivery time | 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information) |
| Application | Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc |
| Certification | ROHS, SGS, ISO9001 |
| Characteristics | Lost Cost,Higher Coercive Force; It need not to be coated because it is difficult to be eroded and oxidized |
| Payment | T/T, western Union, Paypal, L/C |
In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:
Material Grade Specification:
Magnetization direction:
More Shapes:
Ferrite magnets widely application:
Applications of Ferrite Magnets:
• Speaker magnets
• DC brushless motors
• Magnetic Resonance Imaging (MRI)
• Magnetos used on lawnmowers and outboard motors
• DC permanent magnet motors (used in cars)
• Separators (separate ferrous material from non-ferrous)
• Used in magnetic assemblies designed for lifting, holding,
retrieving and separating
• Magnetic Door Catcher
• Instrument and Meters
• Toys
• Arts and crafts
Attributes of ferrite Magnets:
• Least expensive material compared to alnico and rare earth
magnets
• High intrinsic coercive force
• Available in simple shapes only due to manufacturing process
• Lower service temperature than alnico, greater than rare earth
• Lower energy product than alnico and rare earth magnets
|
|
