| Brand Name : | VISION |
| Model Number : | neodymium magnet |
| Certification : | ISO9001:2008, Rohs, Reach, SGS |
| Price : | Negotiable |
| Payment Terms : | negotiable |
| Supply Ability : | 9000000 pieces per Month |
| Delivery Time : | 7 ~ 14 work days |

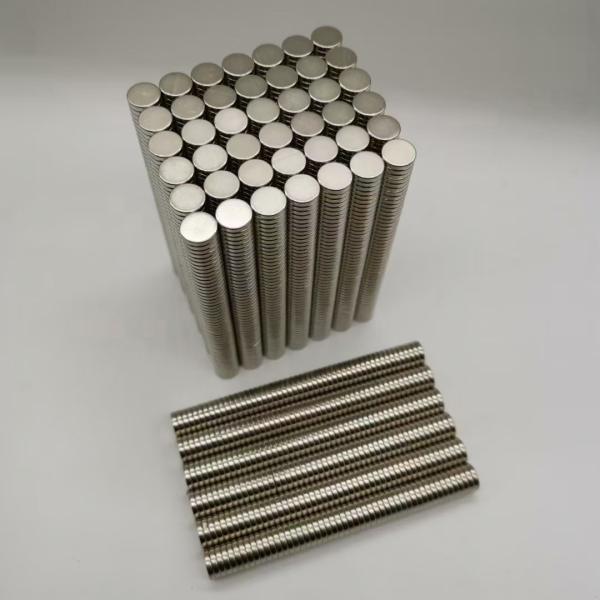

Diameter 10mm X 2mm Ndfeb Disc Magnet Super Strong For Small Packing Box
Neodymium iron boron rare earth permanent magnet is widely used in
motor, automobile, wind turbine, sound systems, speakers, car
horns, earphones,
electroacoustic, communication, VCM, aerospace, nuclear magnetic
resonance, magnetic components, fridge magnet, teaching tools,
educational toys, curtains, curt kitchen knife holders, photo frame
holders, car mobile phone holder, bag button magnets, jewelry,
clothing magnets, etc..
| Product name | Diameter 10mm X 2mm Ndfeb Disc Magnet Super Strong For Small Packing Box |
| Shape | Disc (Sintered Neodymium magnets shape can customized) |
| Material | NdFeB (Neodymium Iron Boron) |
| Coating | Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc. |
| Tolerance in size | +/-0.05mm or +/-0.1mm |
| Magnetization direction | Thickness, Length, axially, diameter, radially, multipolar |
| Grade | N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH |
| Br(kgs) | N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2) |
| Hcj(ka/m) | N35≥955; N52≥876; N30SH≥1353; N33AH≥2785 |
| TW(degrees celsius) | N35≤80; N52≤70; N30SH≤150; N33AH≤240 |
| Application | NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on |
| MOQ | Samples could be offered |
| Delivery time | 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information) |
| Certification | ROHS, SGS, ISO9001 |
Magnetization direction:
Magnetic Properties and Grade:

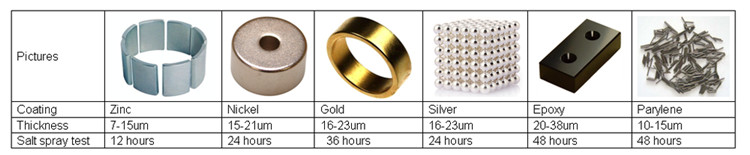

Surface coating:
| Surface | Coating | Thickness (Microns) | Color | Resistance |
| Passivation | 0-1 | Silver Grey | Temporary Protection | |
| Nickel | Ni+Ni | 10-20 | Bright Silver | Excellent against Humidity |
| Ni+Cu+Ni | ||||
| Zinc | Zn | 8-20 | Bright Blue | Good Against Salt Spray |
| C-Zn | Shinny Color | Excellent Against Salt Spray | ||
| Tin | Ni+Cu+Sn | 15-20 | Silver | Superior Against Humidity |
| Gold | Ni+Cu+Au | 10-20 | Gold | Superior Against Humidity |
| Copper | Ni+Cu | 10-20 | Gold | Temporary Protection |
| Epoxy | Epoxy | 15-25 | Black, Red, Grey | Excellent Against Humidity & Salt Spray |
| Ni+Cu+Epoxy | ||||
| Zn+Epoxy | ||||
| Chemical | Ni | 10-20 | Silver Grey | Excellent Against Humidity |
| Parylene | Parylene | 5-20 | Grey | Excellent Against Humidity, Salt Spray. Superior Against Solvents, Gases, Fungi and Bacteria. |
|
|
