| Brand Name : | VISION |
| Model Number : | 130 131 |
| Certification : | ROHS |
| Price : | Negotiable |
| Payment Terms : | negotiable |
| Supply Ability : | 1300000 pieces per month |

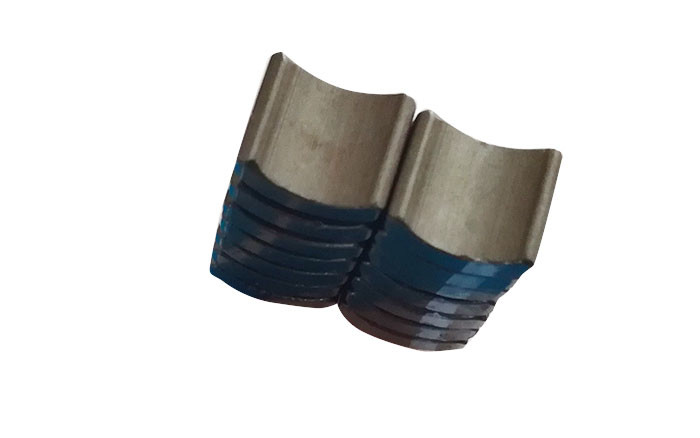

Free energy arc shape hard ceramic motor ferrite magnet 130 131

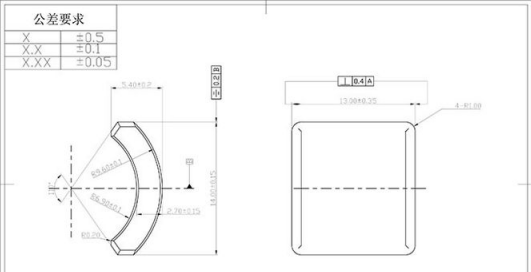

Chord width:13.9±0.3 mm
Axial height:12/13±0.35 mm
Thickness:2.75±0.1mm
Arch height:5.6±0.3mm
Central magnetic force:750±30Gauss
Central angle:110°
Interial Radius:6.8±0.1mm
Exterial Radius:9.55±0.1mm
Place of Origin: Guangdong, China (Mainland)
Brand Name: Vision
Model Number: C5/C8/C10/Y30/Y30BH/Y35/Y40
Type: Permanent
Composite: Ferrite Magnet
Shape: Arc shape
Application: Industrial Magnet
Product Name: C5 C8 C10 Y40 free energy arc shape hard ceramic
motor ferrite magnet
Material: Sro or Bao and Fe2o3
Size: Customers' Request
Magnetism direction: Magnetized in pairs
Tolerance: +/- 1%
Processing: Ceramic processing technology
Certification: ISO9001:2008; Rohs, Reach, SGS
Density: 4.8 - 4.9 G/cm3
Grade: C5 C8 C10 Y30 Y30BH Y33 Y35 Y40
Technology: Mould ferrite magne
We have hunders mould of arc shape ferrite magnet, use for
different kind of motors.
Please send the drawing photo when send the request, so we can give
the accurate quotation in time.
Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. produces Y30, Y30BH, Y33, Y35, Y38, Y40, Y45, Y48 series of
permanent magnet ferrite magnetic tile products, which has high
magnetic performance, stable chemical performance, high and low
temperature resistance and other characteristics.
Our Arc shape ferrite magnets are widely used in the field of
permanent magnet motor cars, energy-saving electrical appliances,
industrial control motors, power tools, magnetic drive and sensors.
| 1: Custom any size and shape ferrite magnet |
| 2: Free design and free samples service |
| 3: 100% payment protection and USD 80000 warranty trade assurance |
| 4: 100% production quality protection with real material |
| 5: 100% on time shippment protection |
| 6: 14 years experience in manufacturing ferrite magnet |
There are mainly two types of ferrite magnets, Barium ferrite
(BaO.6Fe2O3) and Strontium ferrite (SrO.6Fe2O3). Compared with
other permanent magnets, sintered ferrite magnet is cheap. It is
most suitable for most sensitive, but need not very high
performance applicaitons. As this is a non-metal magnets, it is the
ideal magnets for applications that require non-rusty magnets in
humit envirument. Sintered ferrite magnets are widely used in many
different applications, such as motors, cars, magnetic selection
loudspeakers, and many special applications.
Ferrite magnet widely application:
Applications of Ferrite Magnets:
• Speaker magnets
• DC brushless motors
• Magnetic Resonance Imaging (MRI)
• Magnetos used on lawnmowers and outboard motors
• DC permanent magnet motors (used in cars)
• Separators (separate ferrous material from non-ferrous)
• Used in magnetic assemblies designed for lifting, holding,
retrieving and separating
• Magnetic Door Catcher
• Instrument and Meters
• Toys
• Arts and crafts
Attributes of ferrite Magnet:
• Least expensive material compared to alnico and rare earth
magnets
• High intrinsic coercive force
• Available in simple shapes only due to manufacturing process
• Lower service temperature than alnico, greater than rare earth
• Lower energy product than alnico and rare earth magnets
|
|
