N52 N42 N35 N30 Industrial Neodymium NdFeb Rare Earth Flat Disc Magnet 10X2mm
| 1. Custom any size and shape neodymium magnet |
| 2. Free design and free samples service |
| 3. 100% payment protection and USD80000 warranty trade assurance |
| 4. 100% product quality protection with real material |
| 5. 100% on time shippment protection |
Dimensions: 10 dia. x 2 thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0532 oz. (1.51 g)
Pull Force, Case 1: 3.84 lbs
Pull Force, Case 2: 17.33 lbs
Surface Field: 1795 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe
This size is a great general purpose disc magnet in grade N52. They
are excellent for arts and crafts applications that require a
strong, thin disc. Just 1/16" thick, but still a sturdy disc. The
magnet is deceptively strong for it's size
We have big advantage in small size low grade disc neodymium magnet. Grade:N35
Size: D20*2mm D18*2mm D15*2mm D13*2mm
D12*2mm D10*2mm D8*2mm D6*2mm D5*2mm

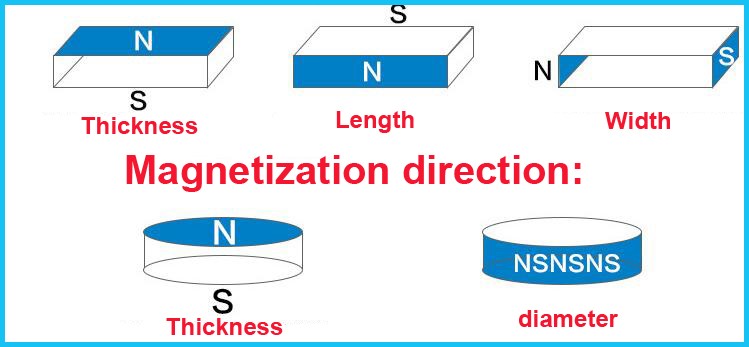

2. Magnetization direction:
Thickness Magnetized
Axially Magnetized
Diametrally Magnetized
Multi-poles magnetized
Radial Magnetized
Customzied specific requirements magnetized
3.Magnetic properties and grade:
| Grade | Br mT (KG). | Hcb KA/m (k0e) | Hcj KA/m (Koe) | BHmax kj/m3 (Mgoe) | Max Operation Temperature |
| N35 | 1170-1210(11.7-12.1). | ≥868(≥10.9) | ≥955(≥12) | 263-287(33-36) | 80 |
| N38 | 1210-1250(12.1-12.5) | ≥899(≥11.3) | ≥955(≥12) | 287-310(36-39) | 80 |
| N42 | 1280-1320(12.8-13.2) | ≥923(≥11.6) | ≥955(≥12) | 318-342(40-43) | 80 |
| N45 | 1320-1380(13.2-13.8) | ≥876(≥11.0) | ≥955(≥12) | 342-366(43-46) | 80 |
| N48 | 1380-1420(13.8-14.2) | ≥835(≥10.5) | ≥876(≥11) | 366-390(46-49) | 80 |
| N50 | 1400-1450(14.0-14.5) | ≥835(≥10.0) | ≥880(≥11) | 376-408(47-51) | 80 |
| N52 | 1440-1480(14.4-14.8) | ≥835(≥10.0) | ≥880(≥11) | 394-414(49.5-52) | 80 |
4. Our Neodymium Magnet Advantages:
1. High Performance :
Our neodymium magnet for variable frequency compressor,motor,
rotor..
2. High Consistancy :
Our neodymium, (Br) and (Hcj) are much higher than 1.63. The
consistency of the surface magnetic field and magnetic flux can be
controlled at +/-0.05%.
3. High Working Temperature :
Our neodymium magnet can satisfy the working temperature
requirements with excellent temperature resistance. can be in most
applications.
D1*3 nickel coating speaker disc
5. Neodymium magnet production flow:
Neodymium magnet melting-Pulverization-Magnetic filed orientation and molding-Sintering-Semi-finished inspection-Precision machining for cutting-Surface treatment-Magnetizing machine-inspection&packing-Ex factory
|
|
